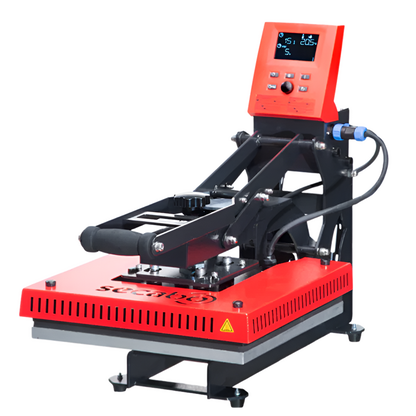

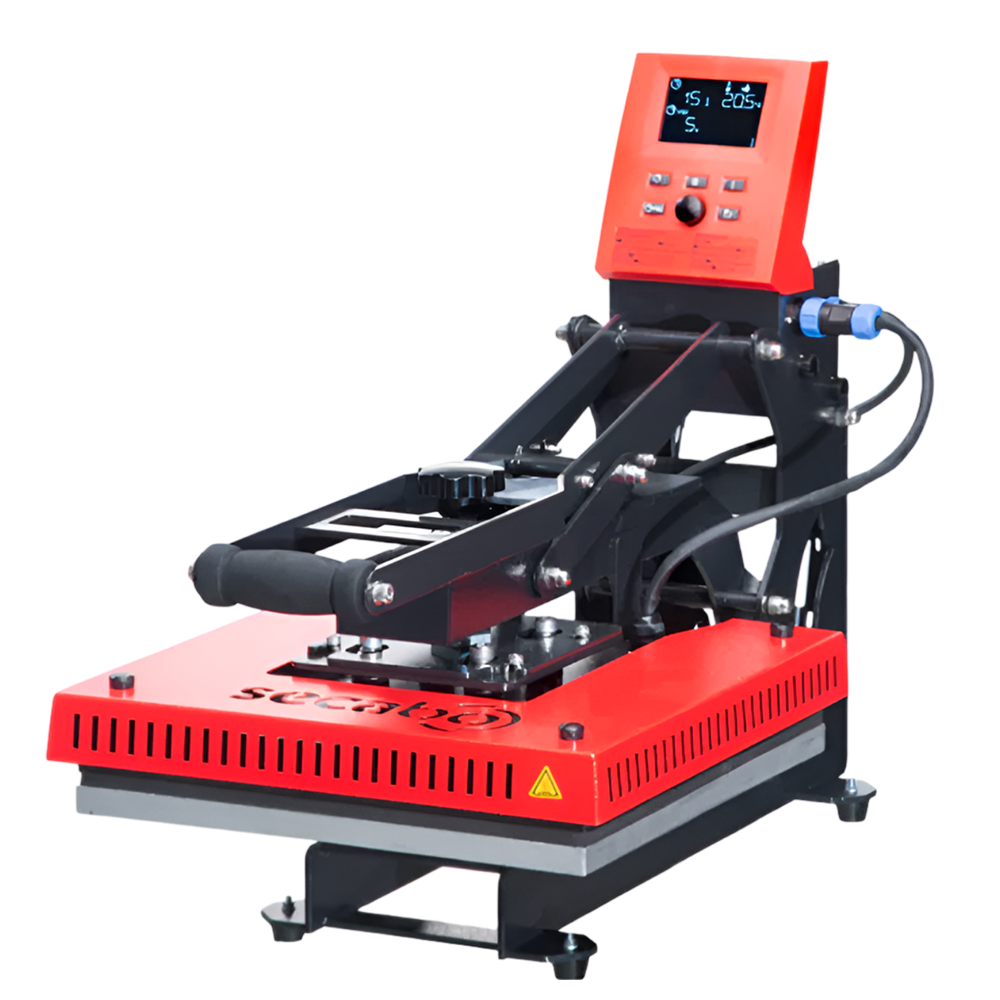

Secabo TC5 SMART Heat Press

Secabo TC5 SMART modular heat press 38cm x 38cm with Bluetooth
With its new TC5 SMART heat press, Secabo opens up new innovative paths leading to even better performance. This latest development of the successful automatic knee-lever press Secabo TC5 introduces a world novelty to the market, which opens up a variety of new options to users: The controller of the TC5 SMART now comes equipped with a Bluetooth interface that allows for controlling the press via the free app Secabo Smart Transfer, while also providing access to a comprehensive function database. This allows users to: Simply enter the type of fabric and the transfer material and immediately retrieve the matching combinations of temperature, time and pressure. Additional features, such as the calculation of heat-up times and warning functions, make the app a valuable assistant for all common heat transfer methods. The new heat press Secabo TC5 SMART offers a work surface of 38 x 38 cm, is easy to use and robust in ongoing operation. The modular design allows for quick and easy installation of removable plates in various formats, a quick change system and a slide extension. Technical Data
Dimensions open                                                               41cm x 93cm x 67cm
Dimensions closed                                                             41cm x 57cm x 73cm
working area                                                                      38cm x 38cm
scope of delivery Mechanical base, heating plate and base plate, controller box, C13 power supply cable, tools, operating instructions
pressure setting the heating plate can be adjusted with a hand reel
max. downforce                                                                 250 g / cm ²
max temperature                                                               225 °C
maximum time preset                                                       999 s
max. clam angle                                                                40 °
power supply AC voltage                                                  230V / 50Hz - 60Hz, 1.8kW
environment                                                                    +5°C - +35°C / 30% - 70% humidity
